Output Cable: Multi-contact connectors
Diodes: 10A, 1000VSchottky by-pass diodes included
Construction: Front: High-transmission 3.2mm tempered glass; Back: TPT; Film: EVA
Frame: Clear anodized aluminum alloy 6063T5 Universal frame; Color: silver
Performance
|
Type |
Wp(W) |
Vmp(v) |
Imp(A) |
L×W×H(mm) |
Description |
|
MA175 |
175 |
35.9 |
4.87 |
1580×808×50 |
6×12 |
|
MA165 |
165 |
35.9 |
4.6 |
1580×808×50 |
6×12 |
|
MA080 |
80 |
18 |
4.4 |
1195×541×35 |
6×9 |
|
MA040 |
40 |
16.8 |
2.4 |
630×541×35 |
4×9 |
|
MA020 |
20 |
16.8 |
1.2 |
656×306×25 |
2×18 |
|
MA010 |
10 |
16.8 |
0.6 |
360×306×25 |
4×9 |
|
MA005 |
5 |
16.8 |
0.3 |
216×306×25 |
4×9 |

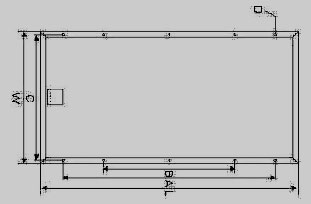

Dimensions
|
Type |
L |
W |
A |
B |
C |
D |
|
MA175 |
1580 |
808 |
1300 |
800 |
758 |
14×9 |
|
MA165 |
1580 |
808 |
1300 |
800 |
758 |
14×9 |
|
MA080 |
1195 |
541 |
960 |
660 |
508 |
14×9 |
|
MA040 |
630 |
541 |
395 |
|
508 |
14×9 |
|
MA020 |
656 |
306 |
641.9 |
|
291.9 |
|
|
MA010 |
360 |
306 |
345.9 |
|
291.9 |
|
|
MA005 |
216 |
306 |
201.9 |
|
291.9 |
|
