125×125 Mono-crystalline Solar Panel

125×125 Mono-crystalline Solar Panel

Price£ºMembers-only access to
Documentation.:      Download

Output Cable:   Multi-contact connectors
Diodes: 10A, 1000VSchottky by-pass diodes included
Construction:   Front: High-transmission 3.2mm tempered glass; Back: TPT; Film: EVA
Frame:   Clear anodized aluminum alloy 6063T5 Universal frame; Color: silver
Performance
Type
Wp(W)
Vmp(v)
Imp(A)
L¡ÁW¡ÁH(mm)
Description
SA180
180
35.4
5.1
1580¡Á808¡Á50
6¡Á12
SA175
175
35.4
5
1580¡Á808¡Á50
6¡Á12
SA165
165
34.4
4.8
1580¡Á808¡Á50
6¡Á12
SA125
125
26.6
4.7
1195¡Á808¡Á35
6¡Á9
SA120
120
34.8
3.45
1196¡Á808¡Á35
6¡Á12
SA100
100
34.9
2.87
968¡Á808¡Á35
6¡Á12
SA080
80
17.6
4.5
1195¡Á541¡Á35
4¡Á9
SA040
40
17.6
2.3
630¡Á541¡Á25
4¡Á9
SA020
20
17.2
1.2
656¡Á306¡Á25
2¡Á18
SA010
10
17.2
0.6
360¡Á306¡Á25
4¡Á9
SA005
5
17.2
0.3
216¡Á306¡Á25
4¡Á9

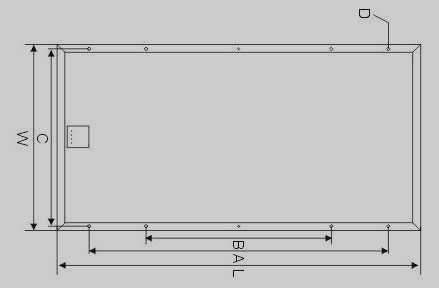

Dimensions
Type
L
W
A
B
C
D
SA180
1580
808
1300
800
758
14¡Á9
SA175
1580
808
1300
800
758
14¡Á9
SA165
1580
808
1300
800
758
14¡Á9
SA125
1195
808
960
660
758
14¡Á9
SA080
1195
541
960
660
508
14¡Á9
SA040
630
541
395
¡¡
508
14¡Á9
SA020
656
306
641.9
¡¡
291.9
¡¡
SA010
360
306
345.9
¡¡
291.9
¡¡
SA005
216
306
201.9
¡¡
291.9
¡¡
