Cam Switch (Rotary Switch)

Price：Members-only access to

Documentation.:

Download

Features:

LW26 series rotary switches are suitable for: on-off of an electrical circuit, change-over of electrical circuits, motor switch, instrument switch, and main switch.
LW26 series rotary switches comply with: GB 14048.3, GB 14048.5, and IEC 60947-5-1.
LW26 series rotary switches have six current ratings: 10A, 20A, 25A, 32A, 63A, 125A, and 160A. LW26-20 and LW26-25 has the finger proof terminals, which offered an extra advantage.

Features

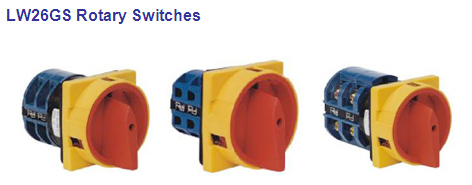

LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches. Installed in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.

Classification

1) LW26GS series Pad-lock type switches have four current ratings: 20A, 25A, 32A and 63A. LW26GS-20 has two escutcheon plate types, small escutcheon plate and large escutcheon plate. Others have only large escutcheon plate. Please check out the Dimensions and installation for details.
The figure 1 represents small escutcheon plate, and 2 represents large escutcheon plate.
Small escutcheon plate allows two pad-locks and large escutcheon plate allows three pad-locks.
2) LW26GS series Pad-lock switches have Quick-stop and Normal if classified by operation.
Normal(LW26GS?/03) has Black escutcheon plate and Black handle.
Quick-stop (LW26GS?/04) has Red escutcheon plate and Red handle.

Features

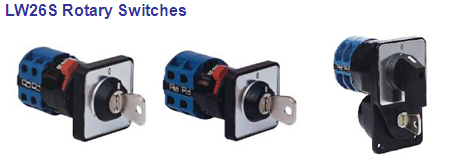

LW26S Key-lock type switches are derivatives of LW26 rotary switches. Installed in equipments, which requires a key to lock the switch. It prevents the mis-operation of the equipments from the unauthorized personnel .LW26S Key-lock type switches comply with the GB 14048.3 and IEC 60947-3.LW26S Key-lock type switch has three current ratings: 20A, 25A and 32A. And in terms of the lock design, we have A type and B type for customers to chose.
