Cylindrical Fuse Links

Price：Members-only access to

Documentation.:

Download

Application

Protection against overload and short circuit in electric lines (type gG), also available for protection of semiconductor parts and equipments against short-circuit (type aR) and protection of motors (type aM). Rated voltage up to 660V; Rated current up to 125A; Working frequency 50Hz AC; Rated breaking capacity up to 100KA. Compliant with GB13539 and IEC269.

Features

Variable cross-section fuse element made from pure metal sealed in cartridge made from high-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz sand ad arc-extinguishing medium. Dot-welding of fuse element ends to the caps ensures reliable electric connection; Striker may be attached to the fuse link to provide immediate activation of micro switch to give various signals or cut the circuit automatically.

Technical Data

Cat.
No.

Models

Dimensions/sizes (mm)

Rated voltage (V)

Rated current (A)

Weight (g)

Ours

Cross-reference

gG(Normal)

aR(Fast)

gG(Normal)

aR(Fast)

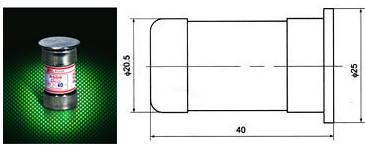

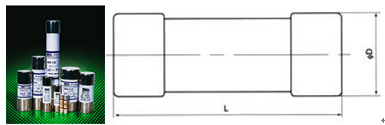

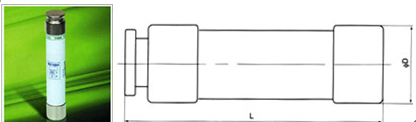

Fig.

ФD×L

0101

RO06

RS06

-

-

1.1

Ф12.7×29

250/380

1～32

6.5

0102

RO07

RS07

-

-

1.1

Ф30×57

600

10～100

75

0103

RO09

RS09

-

-

1.1

Ф18×37

500

2～63

17.4

0104

RO10

RS10

-

-

1.1

Ф18×50

500

2～63

23.5

0105

RO11

RS11

AJT JKS LPJ

ACL

1.1

Ф21×58

600

2～32

51.5

0106

RO12

RS12

AJT JKS LPJ

ACL

1.1

Ф27×60

600

35～100

90

0107

RO13

RS13

-

-

1.1

Ф15×50

500

2～40

23.2

0108

RO14

RS14

RT19-16 gF1

-

1.1

Ф8.5×31.5

500

0.5～20

4.4

0109

RO14A

RS14A

-

-

1.1

Ф8.5×23

250

0.5～20

3.5

0110

RO14B

RS14B

-

-

1.1

Ф8.5×36

380/500

0.5～20

5.0

0111

RO15

RS15

RT14-20 gF2
RT18-32 RT19-25

KTK KLM

1.1

Ф10.3×38

380/500

0.5～32

7.7

0112

RO15A

RS15A

-

-

1.1

Ф10.3×25.8

250

0.5～16

4.8

0113

RO15B

RS15B

-

-

1.1

Ф10.3×31.5

250/500

0.5～25

5.8

0114

RO15C

RS15C

-

-

1.1

Ф10.3×34

380/500

0.5～32

6.2

0115

RO15D

RS15D

-

-

1.1

Ф10.3×57

600

2～32

11

0116

RO16

RS16

RT14-32 gF3
RT18-63 RT19-40

EWP

1.1

Ф14.3×51

380/660

2～50

20.5

0117

RO16A

RS16A

-

-

1.1

Ф14.3×38

500

2～50

15.6

0118

RO16B

RS16B

-

-

1.1

Ф14.3×45

500

2～50

18.5

0119

RO16C

RS16C

-

-

1.1

Ф14.3×67

500

2～50

27.5

0120

RO17

RS17

RT14-63 gF4
RT18-125 RT19-100

URE2263

1.1

Ф22.2×58

380/660

10～125

58

0121

RO18

RS18

-

-

1.1

Ф9.6×30

380

0.5～25

4.8

0122

RO19

RS19

FRS TRS FLSR

-

1.1

Ф20.5×127

600

0.5～32

91.2

0123

RO19A

RS19A

FLNR PC2

-

1.1

Ф20.5×76

250/500

0.5～63

63

0124

RO19B

RS19B

-

-

1.1

Ф20.5×114

600

0.5～32

85

0125

RO19C

RS19C

FRS TRS FLSR

-

1.1

Ф27×139

600

32～63

172.4

0126

RO19D

RS19D

-

-

1.1

Ф27×147

600

32～63

160

0127

RO54

RS54

-

-

1.1

Ф5×20

250

0.5～16

1

0128

RO55

RS55

-

-

1.1

Ф5×25

250

0.5～16

1.3

0129

RO56

RS56

-

-

1.1

Ф6×20

250

0.5～16

1.7

0130

RO57

RS57

-

-

1.1

Ф6.3×25

250

0.5～16

2.1

0131

RO58

RS58

-

-

1.1

Ф6.3×31.5

250/500

0.5～16

2.5

Cat.
No.

Models

Dimensions/sizes (mm)

Rated voltage (V)

Rated current (A)

Weight (g)

Ours

Cross-reference

gG(Normal)

aR(Fast)

gG(Normal)

aR(Fast)

Fig.

ФD×L

0132

RO08

RS08

-

JJS

1.2

Ф20.5×40

600

2～63

40

.
No.

Models

Dimensions/sizes (mm)

Rated voltage (V)

Rated current (A)

Weight (g)

Ours

Cross-reference

gG(Normal)

aR(Fast)

gG(Normal)

aR(Fast)

Fig.

ФD×L

0134

RO16H

RS16H

FRH-R

-

1.4

Ф14.3×51

250

2～50

25

0135

RO17H

RS17H

-

-

1.4

Ф22.2×58

380/500

10～125

52

0136

RO19H

RS19H

FRS-R

-

1.4

Ф20.5×127

600

0.5～63

82

0137

RO19AH

RS19AH

FLNR

-

1.4

Ф20.5×76

600

0.5～63

60

0138

RO19BH

RS19BH

-

-

1.4

Ф20.5×114

600

0.5～63

72

0139

RO19CH

RS19CH

FRS-R

-

1.4

Ф27×139

600

32～63

148

0140

RO19DH

RS19DH

-

-

1.4

Ф27×147

600

32～63

172
