JQX-10F (JTX) General Relay

JQX-10F (JTX) General Relay

Price£ºMembers-only access to
Documentation.:      Download

CLASSIFICATION
MINIAURE POWER RELAY SERIES
MODEL
JQX-10F(JTX)
JQX-10F(JTX)
DIMESIONS(mm)
34.5¡Á34.5¡Á52
34.5¡Á34.5¡Á52

CONTACT FORM
2Z
3Z
CONTACT CAPACITY
10A 220V AC
10A 220V AC
COIL VOLTAGE
DC
6¡«220V
6¡«220V
AC
6¡«380V
6¡«380V
COIL POWER
DC:¡Ü1.5W AC:¡Ý2.5VA
PICK-UP
80% max
DROP-OUT
AC 30% min DC 15% min
CONTACT RESISTANCE
¡Ü50m¦¸
INSULATION TESISTANCE
¡Ý100m¦¸
LIFE
ELECTRICAL
105 times
MECHANICAL
107 times
DIELECTRIC STRENGTH
BETWEEN OPEN CONTACTS
AC 1000V 50/60Hz/min
BETWIN COIL&CONTACT
AC 1500V 50/60Hz/min
MOUNTING FORM
Socket
OPERATING TEMPERATURE
-40¡æ¡«+55¡æ
WEIGHT
About 85g
LIKE PRODUCTS
OMRON MK2P MK3P H,K FRM5
FITTED SOCKET

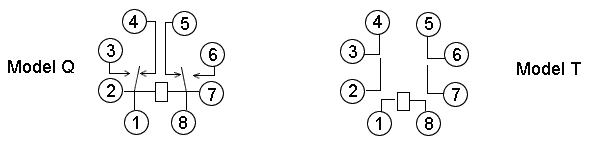

MOUNTING HOLES & BOTTOM VIEM JQX-10F(JTX) 2Z

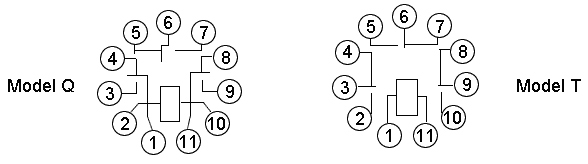

MOUNTING HOLES & BOTTOM VIEM JQX-10F(JTX) 3Z
