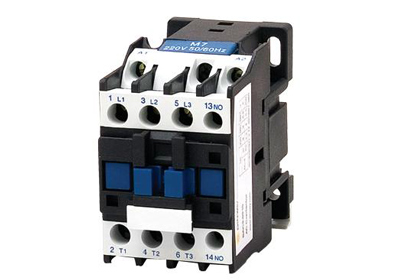

CJX2 (LC1-D)

CJX2 (LC1-D)

Price£ºMembers-only access to
Documentation.:      Download

CJX2 Series AC Contactor

APPLICATION
CJX2 Series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 95A, for making, breaking, frequently starting & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced to IEC947-2.

SPECIFICATIONS
Type
CJX2-09
CJX2-12
CJX2-18
CJX2-25
CJX2-32
Rated operation       current(A)
AC-3
9
12
18
25
32
AC-1
3.5
5
7.7
8.5
12
AC-3 capacity of phase 3 squirrel-cage motor AC3 (kw)
220/230V
2.2
3
4
5.5
7.5
380/400V
4
5.5
7.5
11
15
415V
4
5.5
9
11
15
440V
4
5.5
9
11
15
500V
5.5
7.5
10
15
18.5
660/690V
5.5
7.5
10
15
18.5
Rated heat current(A)
20
20
32
40
50
Electrical life
AC-4x104
20
20-15
20-7
15-7
15-7
AC-3x106
2
2
2
2
2
Mechanical life x 106
20
20
20
20
20
Number of the contacts
3P+NO
3P+NC

Type
CJX2-40
CJX2-50
CJX2-65
CJX2-80
CJX2-95
Rated working   current(A)
AC-3
40
50
65
80
95
AC-4
18.5
24
28
37
44
AC-3 capacity of phase 3 squirrel-cage motor AC3(kw)
220/230V
11
15
18.5
22
25
380/400V
18.5
22
30
37
45
415V
22
25
37
45
45
440V
22
30
37
45
45
500V
22
30
37
55
55
660/690V
30
33
37
45
45
Rated heat current(A)
60
80
80
125
125
Electrical life
AC-4x104
10-7
7
7-6
7-5
7-5
AC-3x106
2
2
1.6
1.6
1.6
Mechanical life x 106
20
20
20
10
10
Number of the contact
3P+NC+NO


STANDARD CONTROL CIRCUIT VOLTAGE
Volts
(VAC)
24
42
48
110
220/230
230
240
380/400
400
415
440
500
660
50Hz
B5
D5
E5
F5
M5
P5
U5
Q5
V5
N5
R5
S5
Y5
60Hz
B6
D6
E6
F6
M6
-
U6
Q6
-
-
R6
-
-
50/60Hz
B7
D7
E7
F7
M6
P7
U7
Q7
V7
N7
R7
-
-
