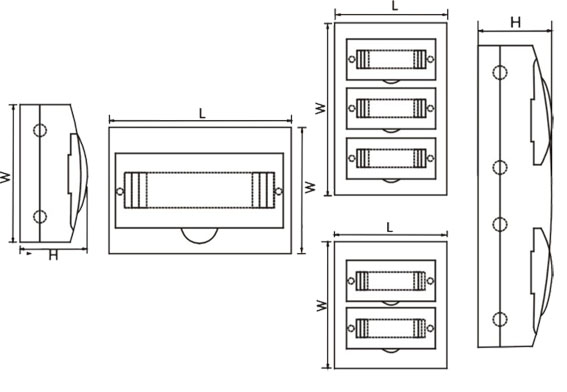

DYPS Distribution Box

Price：Members-only access to
Documentation.:      Download

The distribution box is suitable for mounting of modular electric installation devices with maximum current up to 125A. The product, fitted with neutral and earth terminal bars and DIN rail, is widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.



1) Material: Fire-resistant ABS with transparent PC lid

2) Special din rail installation design adjustable in height and horizontal position

3) Standard Knockouts for different connection requirements

4) Earth Bar and Neutral Bar available for easy and safe connection

5) Standards: GB7251.3-1997 and IEC60439-3



1) Rated insulation voltage: AC 500V

2) Rated voltage: AC 240V/400V

3) Impulse voltage resistance: 2500V/Min

2) Rated current: Max. 125A

4) Protection degree: IP 30
