BAH9-100 Main Switch/Isolator

Price：Members-only access to

Documentation.:

1 Technical data

Type	BAB9-100
Number of poles	1P、2P、3P、4P
Rated Current(In)	63, 80, 100A
Rated Voltage(Un)	AC 230(240)/400(415)V
Rated frequency	50(60)Hz
Tripping Curve	C、D
Short-circuit breaking capacity(Icn)	6KA
Magnetic releases operate	C curve: between 5 and 10 In D curve: between 10 and 14 In
Endurance	≥ 10000
Connection Capacity	50mm²
Terminal protection	IP20
Certificates	CE

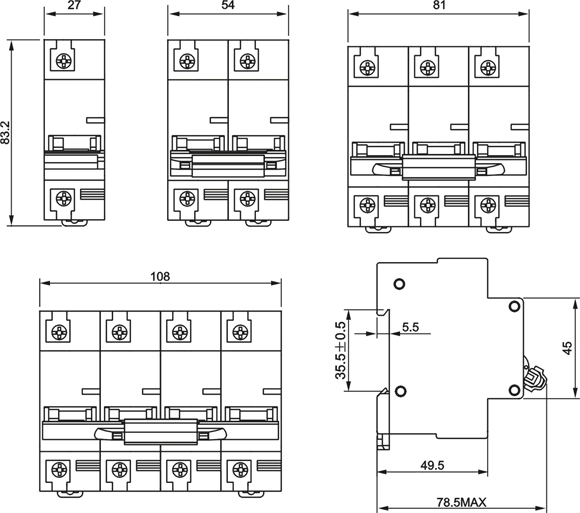

2 Dimensions(mm)
